With all the data shuffled around in the information age we live in, the ability to store and transport data files as easily as possible is important. Companies responded by first started offering USB 2.0 drives with storage capacities all the way up to 256GB. Unfortunately, USB 2.0 transfer rates aren’t very quick. The thought of waiting to fill something that size with files is mind numbing. Fortunately, the speed problem has been solved thanks to the latest USB 3.0 flash drives.
Today we’re taking a look at the Kingston 32GB Data Traveler Ultimate 3.0 USB flash drive which is not only beefy at 32GBs, but also supports the quick transfer speeds of the USB 3.0 standard. Let’s check it out!
Features and Specifications
Aside from the obvious, the DataTraveler series continues its reign as Kingston’s most popular USB flash drives. Only this time, it gets a couple internal controllers with a bridge chip to achieve USB 3.0 performance which has been proven to be much faster than USB 2.0 internal or external storage devices. The new DataTraveler Ultimate (DTU) 3.0 comes in 16GB, 32GB, and 64GB capacities and unlike SSD drives, the read and write specifications are the same throughout the size line up.
Our 32GB DTU 3.0 is rated to speeds of 80 MB/s read and 60 MB/s write in sequential transfer tests. Compare that to the theoretical USB 2.0 speeds of 30 MB/s read and 30 MB/s write. Smaller 4KB block transfers, which represent real world performance well, also benefit greatly with this faster interface. We’ll be covering this in testing shortly.

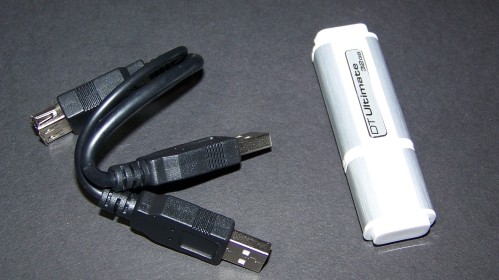

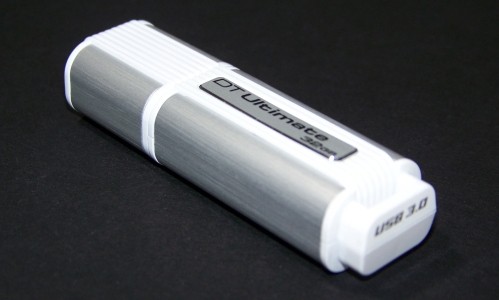

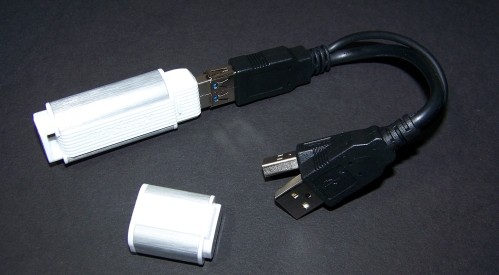

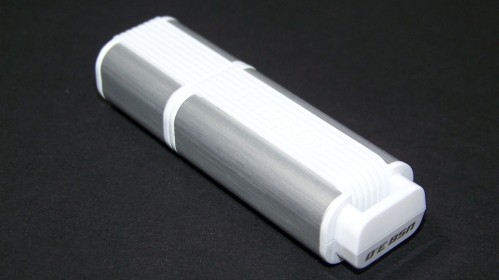

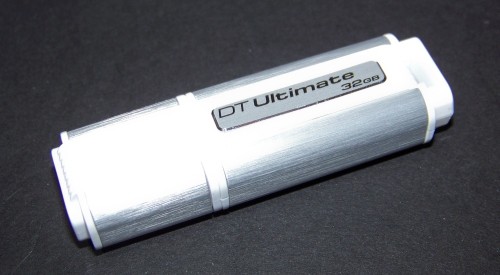

The DTU 3.0 features an attractive “storm trooper” white plastic housing that’s a little larger than some USB flash drives. It also utilizes a dual USB adapter cord for connecting to USB 2.0 ports only. Otherwise, only one end needs to be connected for this USB 3.0 device to function. We’ll talk about that more in a sec.
As far as pricing goes, the DTU 3.0 does carry a bit of an early adopter premium compared to USB 3.0 drives. Costs are approximately $65 US for the 16GB, $100 US for the 32GB and $200 US for the 64GB version respectively.
Closer Look
Comparatively speaking, USB 2.0 and 3.0 DataTraveler USB flash drives all come in similar capacities. As usual, the housing changes a little along with the internal memory controller that utilizes the flash memory. While I can’t confirm what flash memory is used, I can tell you that it needs to be of a high grade in order to keep up with the speed of the USB 3.0 controller. While my old school DataTraveler flash drive came in a HyperX blue and black rubber housing, the new DTU 3.0 gets the cool white housing. There will be no mistaking this one for another brand’s drive.
Our test sample of the DTU 3.0 is not only designed to hold up to 32GB of your precious data, it’s also tuned to be bootable and can even hold your apps if you choose to run them off it. This comes in handy if you need to boot a separate OS off the stick or launch apps that you don’t want to keep on the local drive. More impressive is that fact that with USB 3.0’s theoretical 5 Gbps of transfer speed, it actually has more bandwidth than the SATA2 standard and thus can be used as a app drive without a performance penalty.
Test System
You obviously want to see how USB 3.0 performs in a powerful little flash drive, so we’re connecting it to a system that supports USB 3.0 devices. This is color coded by blue USB ports instead of black ones on most modern motherboards today. Let’s break down the test system:
- Processor: Intel Core i7-870 Lynnfield LGA1156
- Motherboard: GIGABYTE GA-P55A-UD3
- Memory: Kingston HyperX 4GB 2133MHz DDR3 Dual Channel
- Graphics: GIGABYTE GA-HD587UD-1GB (HD 5870)
- Flash Drive 1: Kingston DataTraveler Ultimate 3.0 32GB USB Flash Drive (as tested)
- Flash Drive 2: Kingston DataTraveler HyperX 2.0 8GB USB Flash Drive
- Flash Drive 3: SuperTalent SSP 2.0 8GB USB Flash Drive
- Storage: Kingston 128GB SSDNow V+
- Power Supply: Antec CP-850 850Watt ATX
- Cooling: Zalman CNPS10X Extreme
- Operating System: Windows 7 Pro 64 Bit Ultimate Edition
Just in case you weren’t already aware, you do need to install the USB 3.0 driver that comes with your motherboard software disc before being able to take advantage of USB 3.0 on your supported motherboard. If you can’t find it, you can get the driver from your motherboard manufacturer’s website. Our board uses the NEC USB 3.0 chipset.
Test Notes and Method
I decided to use some of my favorite USB 2.0 flash drives in this comparison. Drives were once considered the cream of the crop in flash drives. Users expect the DTU 3.0 to be faster, so I tested these USB flash drives based on their intended purpose.
The latest Crystal Disk Mark was used to give us Sequential, 512K, and 4K data block transfer rates from both flash drives. I finished up with a timed data transfer exercise where a 1.92GB folder filed with 5MP photos and product videos was transferred to and from the flash drives.
Crystal Disk Mark
While it’s easy to test just the sequential read and write rates, it won’t explain why some flash drives seemingly transfer data more nimbly. That’s why I’ve included the 512K and 4K data block tests as well.
SuperTalent 8GB SSP 2.0
We begin by checking the performance of my SuperTalent 8GB flash drive. Sequential performance is roughly 21.4 MBs read and 12.1 MB/s write. The 4KB read rate is actually pretty surprising at 8.1 MB/s read, but not so much with the .22 MB/s write which equates in to longer wait times when moving data to the flash drive.
DataTraveler 8GB HyperX 2.0
Next, I plugged in my HyperX DataTraveler 2.0 which is a little newer. Sequential read was 31.1 MB/s and write 23.4 MB/s which is noticeably higher. However, 4KB read speeds were only .015 MB/s which is why adding data takes so long as well.
DataTraveler 32GB Ultimate 3.0
Finally, the DataTraveler Ultimate 3.0 was connected to the motherboard’s blue USB port. Sequential read jumps to a whopping 87.2 MB/s and 64 MB/s write. Small 4KB block performance answers the question why USB 3.0 is so fast. Read speeds were 5.1 MBs which was lower than the other two, but write speeds were 11.6 MB/s.
Even compared to the results a couple of other 32GB flash dries reviewed over the last few months, the DTU 3.0 is clearly ahead. Patriot’s Xporter Rage 32GB Extreme scored 25.55MB/s read and 18.43MB/s write. The DTU 3.0’s cousin, the Kingston DataTraveler 150 32GB scored a lower 29.34 MB/s read and 12.68MB/s write speeds, further solidifying it’s place as a top performer.
Because the DTU 3.0 4KB write speed is so much faster, it’s what really gives the flash drive its wings which is extremely handy for desktop and office users that really want some grab and go storage that keeps up with them. In order to better help you understand how that applies to you, let’s move on to my time trial file transfer.
Time Trial File Transfer
The concept is simple. I simply moved a 1.92GB folder filled with pictures, text, and videos to and from the flash drives. There’s so many different sized data blocks in this file that it will put any controller to work, especially these flash drives.
As you can see, the DTU 3.0 essentially leaves the others in the dust thanks to the power of a USB 3.0 controller. I tested the DTU in USB 2.0 mode using the wire adapter as well. Oddly, it’s a bit slower writing to the flash drive. This could be because the flash memory is tuned for the 3.0 controller rather than the 2.0 controller. But, transferring the file back to the PC, it makes a little gain over the USB 2.0 HyperX DataTraveler.
While I didn’t include my free “Black Friday” 4GB flash drive, it probably wouldn’t shock you to know it took 8:53 to write the file and 5:21 to put it back on my PC. That thing use to take so long that I could take my time refilling my coffee cup between transfers.
Final Thoughts
Simply put, USB 3.0 is now fast enough to make you think you have a lower end SSD within your system. While it’s not meant to be your primary storage, it is meant to be a more improved, quick, portable storage solution. While you could pick up an external USB 3.0 enclosure and a SATA2 hard drive and experience even higher performance, it’s not nearly as portable, durable or as convenient as the Kingston DataTraveler Ultimate 3.o flash drive.
Currently, the DTU 3.0 prices in at a premium at $99.99 US for the 32GB model. While it seems like that might be a bit high, that’s roughly about $3.12 a GB. It’s also not that far off from the pricing of other slower USB 2.0 drives of the same capacity. When you put it in that perspective, it’s not actually such a bad value. Plus, as more USB 3.0 motherboards and PCI controller cards make their way into our homes and offices, prices will continue to fall.
In the meantime, the DataTraveler Ultimate 3.0 provides real world performance that I can really feel in day to day tasks. As a result, it’s become my new favourite.
Pros:
- Comes in high capacities from 16GB to 64GB
- Great transfer rates compared to USB 2.0
- High performance allows more uses than just storage
- A good looking drive!
Cons:
- Early adopter premium pricing
Overall Rating: 9.0 / 10.0
Love This Review? Hate This Review? Leave a Comment or Hit The Forums!
Kingston DataTraveler Ultimate 3.0 32GB Flash Drive – Photo Gallery
